Galaxy A5 (6) Nougat Software Update Released for Many Countries, Build A510FXXU4CQH2

Another Nougat software update released by Samsung for the Galaxy A5 (6) smartphone in various countries. The android nougat firmware released having build version number A510FXXU4CQH2. The firmware is based on Android 7.0 Nougat and will bring performance enhancement and bug fixes (if any).

The firmware is now available for download and update manually through Odin. You can also check your phone settings for the OTA update. If there is no OTA update available yet for you, then download from here and follow the tutorials step by step.

Samsung Galaxy A5 2016 SM-A510F
It is always recommended to update your device with the latest firmware whenever Samsung rolled out as with every update Samsung introduces fixes for bugs (if any), improve/enhance overall performance in OS and sometime introduces new features. Both official and manual way to update latest firmware on your Samsung SM-A510F is available in this post.

Scroll through this page to learn how to install stock A510FXXU4CQH2 Android 7.0 Nougat firmware on Galaxy A5 2016 SM-A510F. However, flashing or installing official firmware restore device kernel, so root access to your device will be void, means the firmware update will unroot your device (if it was rooted).

A510FXXU4CQH2 Android 7.0 Firmware Details:

Device: Samsung Galaxy A5 2016
Model: SM-A510F
Version: Android 7.0 Nougat
PDA: A510FXXU4CQH2

Warning!

The firmware is released only for the Samsung Galaxy A5 2016 SM-A510F. So, don’t try this tutorial on any other Android device and also the tutorial is based on Windows PC. AndroidOfficer is not responsible If anything wrong happens to your device after following this guide, try this at your own risk. However, we believe that if you follow the instructions carefully that mentioned in this guide, your device shouldn’t face any issue.

Pre Requisites:

Before proceeding to update guide, AndroidOfficer recommend to backup all your device data and settings to restore later when you need that. However, official firmware restore all previous data but if your device get stuck at bootloop issue or fall into any error, the backup file will help you to restore all your data.
  1. Check your device battery percentage, make sure that your device have at least 60% battery power (How to Check Battery Percentage on Android Devices)
  2. Backup all your device data and settings to external storage- (How to Backup Android Data and Settings)
  3. Check that USB Debugging is Enabled on your device, otherwise it is not possible to connect and transfer files between PC and Galaxy A5 2016 SM-A510F via USB- (How to Enable/Disable USB Debugging on Android Devices)
  4. Install USB Driver for Galaxy A5 2016 SM-A510F on your PC (Download USB Driver
Note That:
  • If your Galaxy A5 2016 SM-A510F have any Custom ROM installed such as- CyanogenMod ROM, ParanoidAndroid ROM, AOKP ROM, SLIM ROM, PACman ROM, Avatar ROM, Omni ROM, LiquidSmooth ROM, Beanstalk ROM, Carbon ROM etc, then it’ll be replaced by stock firmware.
  • Custom Recovery such as ClockWorkMod Recovery (CWM) or TWRP or Philz Recovery will be replaced by Stock Recovery.

Check OTA Update:

  1. Turn on Mobile Data or connect to WiFi network on your phone (should have stable Internet connection)
  2. Go to Phone Settings>>Software update, and tap on the Download updates manually Option (If its show “The latest updates have already been installed” message, then your device haven’t receive any OTA yet, check back later or try installing through Odin.)
  3. If the update is available, then Tap Download to start the download and installation process
  4. Once done, your device will reboot automatically
If OTA don’t work for you, then download firmware from the below list and follow the manual installation guide as it is.

Software Update via Odin:

Step 1: First download the firmware from below and extract the zip file, you should get .tar.md5 file along with few other files.

Download A510FXXU4CQH2 Android 7.0 Nougat Firmware




































Step 2: Download latest Odin Software and extract the zip file, you should get Odin application file having .exe file extension along with other files.

Step 3: Now Open/Run Odin application file as an administrator (to open program with admin privilege, right click on the Odin software file and click on “Run as administrator” from the context menu, this is applicable only on Windows Vista, Windows 7 or higher PC).
Odin Software
Step 4: Now switch off and boot galaxy a5 (6) into download mode by pressing and holding the volume down+home+power buttons together (long press until the boot screen appears). A warning message will flash, now press volume up key to proceed to "download mode".
download mode key combination
download mode

Step 5: Now connect your phone to computer via phone USB cable.
connect phone to pc


Step 6: In Odin screen, you should see a COM Port number like “0:[COM7 or anything else]” at ID:COM section and “Added!” text at the message box. This means your device has been successfully detected by Odin. (If not, then try connecting through another USB port. If you are using desktop PC, use USB port located at the back of the CPU. If still don’t work, then you should reinstall the USB driver and try again)

Step 7: Make sure that, only the “Auto Reboot” and “F. Reset Time”options are checked in Odin screen.
Odin detected phone


Step 8: Now, click on the AP button and select the .tar.md5 file that you get by extracting the firmware zip file in step 1.

Step 9: Now, click on the Start button to begin the installation process, and wait few moments.
Once completed, you would see “PASS!” message in ID:COM port having green background.
odin pass message
    Your phone should automatically reboot after completion. You can now disconnect/unplug phone USB cable from computer.
    Congrats! your Galaxy A5 2016 SM-A510F now updated to the A510FXXU4CQH2 Android 7.0 Nougat stock firmware. Now, go to Settings>>About phone, tap on Software info and verify the firmware update.

    How to Fix Bootloop on Galaxy A5 2016 SM-A510F

    If anything goes wrong, your device may stuck at booting animation. If your Galaxy A5 2016 SM-A510F stuck at boot animation screen for more than 10 minutes, then follow these instructions:

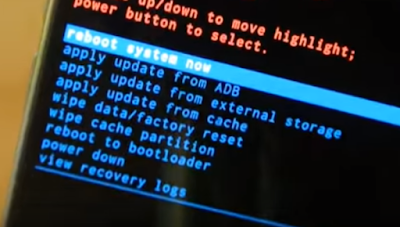

    • Go to Recovery Mode by pressing and holding the Volume Up+Home+Power buttons together.
    • Now, perform Wipe Data/Factory Reset and Wipe Cache Partition task before selecting the reboot system now option. In Recovery Mode use the Volume keys to navigate between options and Power key to select any option.
    galaxy j7 2016 recovery mode
    Note that: Wipe task process will erase all your device internal memory data but not the external SD card data.
